3375 1680W Brushless Motor – 12-42V for Power Tools & Home Automation
Inventory
隐藏域元素占位
- Product Description
-
PREFORMANCEPARAMETER
型号
TYPE电压范围
空载转速
空载电流
额定电压
额定转速
额定扭矩
额定电流
额定功率
最大扭矩
电机重量
Voltage range
Un-load Speed
Un-load Current
Rated Voltage
Rated Speed
Rated Torque
Rated Current
Rated Power
Maximum Torque
Motor Weight
(V)
（RPM)
(A)
(V)
(RPM)
(mNm)
(A)
(W)
(mNm)
(G)
3375
12-42
13200
0.9
36
12100
133.4
5.3
169
1310
275

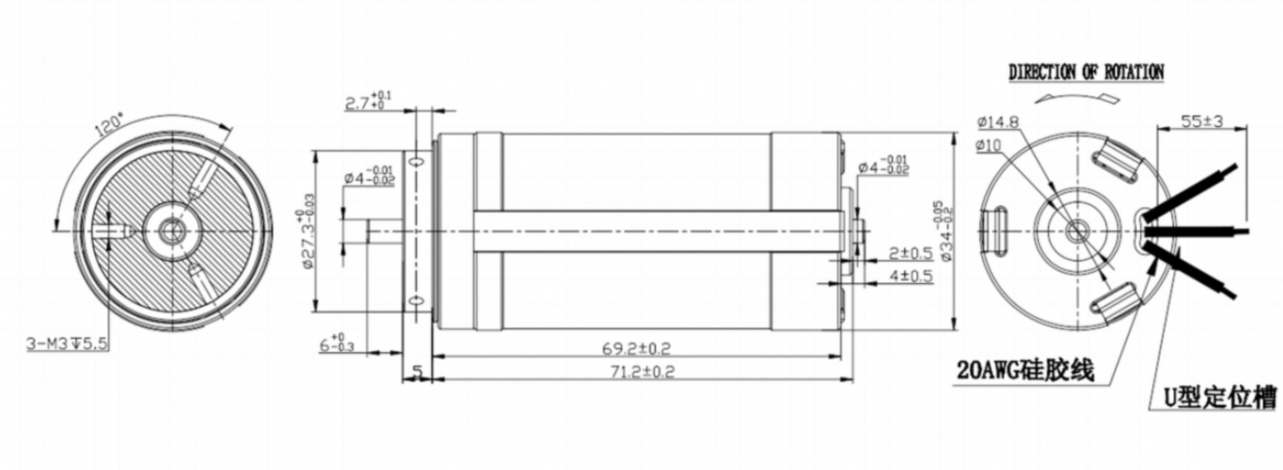

OUTLINE DRAWING
3375 1680W Brushless Motor
12-42V for Power Tools & Home AutomationOne motor platform for pruning shears, curtains, screwdrivers, sunshades, windows, doors, and wrenches
Technical Specifications
Model3375Voltage Range12 – 42V DCNo-Load Speed13,200 RPMNo-Load Current0.9 ARated Voltage36VRated Speed12,100 RPMRated Torque133.4 mNmRated Current5.3 ARated Power169 WMax Power1680 WMax Torque1,310 mNmMotor Weight275 gWide Voltage: 12V to 42V
12V – 24VCurtains · Sunshades · Windows
Low torque, quiet operation24V – 36VPruning shears · Screwdrivers · Doors
Balanced torque and speed36V – 42VHandheld wrenches · Heavy duty
1680W peak powerKey Features
- 12-42V wide input – Works with 12V, 18V, 20V, 24V, 36V, and 42V battery systems
- 1680W peak power – Handles pruning shears, wrenches, and high-torque applications
- 275g lightweight design – Easy integration into handheld and automated devices
- 0.9A no-load current – Energy efficient at idle
- 1310mNm max torque – High torque density from a compact motor
- Quiet operation – Suitable for home automation (curtains, sunshades, windows)
Applications
5cm Pruning Shears Electric Curtains Electric Screwdrivers Electric Sunshades Electric Windows Electric Doors Handheld WrenchesOEM Customization
- Shaft length and diameter modification
- Connector type (JST, Molex, bare wire, custom)
- Mounting bracket design
- IP rating (IP40 / IP54 / IP65)
- Hall sensor integration for position feedback
- Planetary or spur gearbox integration
Frequently Asked Questions
What voltage should I choose for my application?12-24V for curtains, sunshades, windows. 24-36V for pruning shears and screwdrivers. 36-42V for 1680W peak power in handheld wrenches and heavy-duty tools.Can this motor cut 5cm branches for pruning shears?Yes. The 3375 provides 1310mNm max torque, sufficient for cutting branches up to 5cm when paired with proper blade mechanism and gear reduction.Is it suitable for electric curtain automation?Yes. At 12-24V, it runs quietly with low current draw (0.9A no-load, ~5A under load). The 133mNm rated torque is adequate for residential curtain tracks.Rated power vs max power – what's the difference?Rated power (169W) is for continuous operation. Max power (1680W) is peak for short durations (5-10 seconds), used for start-up or intermittent high-torque demands.Does the motor include a controller?The motor is sold separately. We can recommend compatible BLDC controllers based on your voltage and power requirements.What is the peak power duty cycle?At 1680W peak, recommend ≤10 seconds operation with 30 seconds rest. For continuous operation, stay within 169W rated power.
